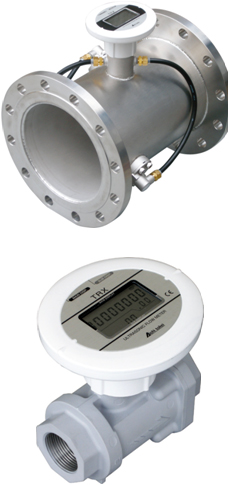

TRX & TRZ FLOW METER
Features & Benefits :- Pressure loss = "0", therefore, energy loss = "0"
- Strong resistance to oil and vapor provides high durability
- Measurement and output of forward flow and reverse flow possible
- Wide range ability with ratio of 1:60
- Battery power supply makes power line construction unnecessary
- Easy-to-read display configuration
- Various output functions enable system maintenance and control
Specification :
Fuel : Air or Nitrogen
Flow Range : 0.6 m3/hr to 2000 m3/hr
Size : 25mm to 200mm NB
Working Pressure : 0 ~ Less than 1MPa (Gauge pressure)
Fluid Temperature : -10 ~ 60 °C
Humidity : 90%RH MAX
