Introduction

GTS exclusively represents Salas Pyronics Inc, USA for Sales and Services for its complete range of products for Indian Market. Pyronics Inc, USA is now a Selas Heat Technology company.

Pyronics Inc, USA was acquired in 2009 by Selas Heat Technology, USA creating one of the industry’s broadest sources of Industrial Burners, Process Burners, Mixing Systems and related Combustion accessories and equipment.

Prior to the acquisition by Selas Heat Technology, USA, Pyronics has been serving the combustion Industry since 1940 with its wide variety of products and as a manufacturer of industrial combustion equipment and controls for national and international customers.

Pyronics Inc, USA was the original inventor/designer of heritage products sold under the PYRONICS brand as listed below :

  • NM Burners
  • XNM Burners
  • SW Flat Flame Burners
  • HS High Velocity Burners
  • UHF Series Radiant Tube Burners
  • Premix Tunnel Burners
  • IRC Infrared Burners
  • All BZR series Ratio Regulators
  • Blast Tips (BTSA)
  • Midget Mixers (MM, MMCR & MMTR)
  • Flanged Mixing Tees (FMT)
  • Multi Flomixers (MF)

for more details visit : www.selas.com

Selas Radiant Cup Burner

Features & Benefits : Open firing duradiant burners are available in a range of sizes, cup contours and protective housings. Designed for non-furnace use, they represent an integral construction capable of handling a wide range of problems varying in heat intensity and geometric arrangement.

The "open" type burners may be mounted in any position and are applied with optimum efficiency to situations such as brazing, soldering, drying, heat treating and curing.

  • High-speed radiant heat transfer allows for closer proximity between heat source and work-piece without flame impingement.
  • Differential heating possible with burner outputs of varying intensities.
  • Wide burner throttling ranges.
  • Improved product quality with minimal exposure to the effects of high temperatures.
Specifications :
Fuel : Mixed Gas, Mfg.Gas, Natural Gas and LPG
Burner Capacity : 2000 Kcal/hr to 39000 Kcal/hr
Air/Gas Mixture Pressure : 2.54 mbar to 152.4 mbar

Applications :
Brazing, Soldering, Drying, Heat treating and Curing.

for more details visit : www.selas.com

Selas Duradiant Cup Burner

Features & Benefits : These burners provide close coupling of radiant heat sources for use in “line” arrangements where the heating job is relatively light.

Designed mainly for heating moving webs, line burners also find frequent application in ovens, as well as in heating stationary objects.

  • High-speed radiant heat transfer allows for closer proximity between heat source and work-piece without flame impingement.
  • Differential heating possible with burner outputs of varying intensities.
  • Wide burner throttling ranges.
  • Improved product quality with minimal exposure to the effects of high temperatures.
Specifications :
Fuel : Mixed Gas, Mfg.Gas, Natural Gas and LPG
Burner Capacity : 2000 Kcal/hr to 39000 Kcal/hr
Air/Gas Mixture Pressure : 2.54 mbar to 152.4 mbar

Applications :
Ovens and Heating of Stationery Objects.

for more details visit : www.selas.com

Selas Radiant Wall Burner

Features & Benefits : The basic line of Duradiant furnace wall burners is comprised of two types designed for use above and below 2000°F (1093°C) - with each type manufactured in a high and low capacity range. All parts exposed to furnace temperature are ceramic in the high temperature burners; the low temperature burners employ alloy tip holder

Selas Duradiant furnace burners satisfy a wide range of furnace wall thicknesses for straight or cylindrical wall requirements, either with or without a lighting hole.

Selas Furnace Wall Type Burners Reduce Heating Time.
Specifications :
Fuel : Mixed Gas, Mfg.Gas, Natural Gas and LPG
Burner Capacity : 2000 Kcal/hr to 39000 Kcal/hr
Air/Gas Mixture Pressure : 2.54 mbar to 152.4 mbar

Applications :
Ovens and Furnaces

for more details visit : www.selas.com

Selas Light Duty Panel Burner

Features & Benefits : Light duty-panel type Duradiant burners are intended for use in furnace walls (or roofs-KZ-555 Series only) of varying thicknesses and where close burner spacing is a requirement.

These burners are normally recommended for use where temperatures do not exceed 2000°F (1093°C). However, all critical metallic parts are fabricated of heat resistant alloy material.

The design of the KZ-554 and K-255 Series permits withdrawal of tip-holder assembly from furnace exterior to facilitate tip replacement.

Specifications :
Fuel : Mixed Gas, Mfg.Gas, Natural Gas and LPG
Burner Capacity : 2000 Kcal/hr to 39000 Kcal/hr
Air/Gas Mixture Pressure : 2.54 mbar to 152.4 mbar

Applications :
Ovens and Furnaces

for more details visit : www.selas.com

Selas Radiant KVA Burner

Features & Benefits : The KVA Burner provides a wide turndown operating range with minimum pressure change. The VA Burner offers high turndown of 20:1 or even higher. Selas’ versatile VA-Burner employs the variable-area principle. That is, the position of the burner tip changes as the pressure exerted by the fuel mixture upon the burner diaphragm changes. When mixture pressure exceeds that of a retaining spring, the diaphragm immediately responds by moving the tip to a new position which provides an enlarged port area.

  • Faster heating. The high speed of radiant heat transfer and greater intimacy between the heat source and the work piece assures faster heating without flame impingement.
  • Finer control. Burners focus radiant heat and, when necessary, pattern the heat to yield different degrees of intensity. Uneven heat losses in a furnace can be offset by directing radiant heat so it is proportional to losses.
  • Improved product quality. Faster, more uniform heating frequently improves product quality as it minimizes scaling, decarburization, and the oxidation of materials.
Specifications :
Fuel : Mixed Gas, Mfg.Gas, Natural Gas and LPG
Burner Capacity : 4000 Btu/hr() to 175000 Btu/hr()
Air/Gas Mixture Pressure : 2” wc to 40” wc

Applications :
The VA-Burner is ideally suited for use in galvanizing settings, for roll hardening furnaces (to satisfy long soak cycles); for car-bottom furnaces (where programming is required); for annealing covers; or for continuous strip lines.

for more details visit : www.selas.com

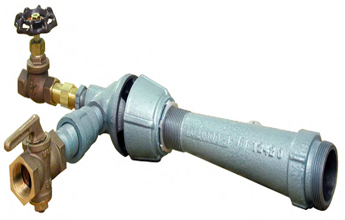

Pyronics Hi-Blast Torches

Features & Benefits : Pyronics High blast torches use a small amount of high pressure air to entrain incoming gas at the mixer. This produces a hard, sharp, clear blue, typical blast burner flame. The venturi efficiently entrains large quantities of combustion air and delivers the mixture to the burner nozzle. The high pressure air valve and primary air shutter provide for wide ranges of adjustment.

  • Available in 8 sizes
  • Blast torch flames, Portable
  • Air blower not required
  • Available with cast iron standard or optional alloy steel nozzles
  • Rugged heavy duty construction
  • Compact trouble-free assembly
  • Air and gas orifices easily removed for cleaning and inspection
Specifications :
Fuel : Natural Gas and LPG
Burner Capacity : 40000 BTU/HR (11.75 kW) to 3000000 Btu/hr(880 kW)
Air/Gas Mixture Pressure : 20 psig to 100 psig

Applications :
Cupola lighting, Direct Flame mould drying Ladle heating, Crucible preheating, Pouring spout heating Die heating, Soldering, Brazing, Welding preheating, Flame heat treating & Flame annealing, Non ferrous metal melting other spot heating applications.

for more details visit : www.selas.com

Pyronics Atmospheric Burner

Features & Benefits : Pyronics Hi-Lo Torches are atmospheric gas burners designed for high turndown ranges on all types of combustion chambers or furnaces operating under a negative pressure. High efficiency Pyronics AN type nozzles used on each assembly provide excellent flame retention at all firing rates and drafts.

  • 16 to 1 turndown with 10 PSIG gas
  • 10 to 1 turndown with standard pressure gas
  • No air blower needed
  • One valve automatic control
  • Low cost proportioning system
  • Not affected by variations in draft
  • High heat releases
  • Simple rugged construction
  • Minimum maintenance
Specifications :
Fuel : Natural Gas and LPG
Burner Capacity : 120000 Btu/hr(35 kW) to 9300000 Btu/hr(273 kW)
Air/Gas Mixture Pressure : 20 psig to 100 psig

Applications :
Air heaters, Boilers, Chemical stills, Heat exchangers, Ovens, Draft furnaces, Dryers & Kilns.

for more details visit : www.selas.com

Pyronics Premix Tunnel Burner

Features & Benefits : Pyronics Tunnel Burners will burn any standard fuel gas at mixture pressures ranging from 0.1 to 60 W. C. Exclusive, patented design of refractory plug “E” and combustion tunnel insures smooth stable operation. The long annular orifice “F” reduces back firing even at very low mixture pressures. Turbulence created by the nose plug and the stepped burner block “G” provides positive flame retention at high mixture pressures with shorter flame length and higher heat release.

  • Capacity changes with out removing burner from furnace.
  • Simplified piping. no unions required
  • Mixture pressure test tapping at each burner
  • Combustion tunnel inspection without removing burner from furnace
Specifications :
Capacity : 3000 Btus/hr (0.9 kW) to 18,15,000 Btus/hr (527 kW)
Fuel : LPG / Natural Gas
Mixture Pressures at Burners : 2” wc to 22” wc
Air Pressures at Mixers : 4 osi to 32 osi

Applications :
Wire Patenting and Annealing Furnaces, Tundish Heaters, Pressurized air heaters, Atmosphere generators and other sealed furnaces or retorts.

for more details visit : www.selas.com

Selas-Ensign Ribbon Burner

Features & Benefits : Designed to fit in any Oven Configuration. Fully compensates for lateral heat imbalance. Provides greater heat output and improved flame retention at even low fire condition. New Ribbon pattern reduces clogging for lower maintenance cost and longer burner life.

Customized configuration for desired zone distribution. Retrofits to any other brand of burner in any oven. Improves oven heat recovery time by 100%. Decreases waste from recipe change-over.

Endorsed by major global companies like APV Bakers. Selas ERB Ensign ribbon burners outperforms all previous zone burners in :

  • Turndown ratio
  • BTU capacity
  • Zone Control Ability
  • Lateral Balance
  • Zone Heat Recovery
Specifications :
Fuel : Natural Gas, LPG or any clean commercial Gas
Burner Capacity : 2,50,000 Btu/hr(73 kW) to 25,00,000 Btu/hr(734 kW)

Applications :
Any low temperature batch or Tunnel conveyor continuous Biscuit or Food Ovens, Flame Treatment Burner for use in the surface treating of PLASTIC FILM, FOIL, NON WOVEN FIBERS, TEXTILE and LAMINATION.


for more details visit : www.selas.com

Selas DNS Nozzle Mix Burner

Features & Benefits : Selas DNS Duradiant burners differ in operation & performance from conventional open fire burners. The cup like design and the manner in which the burning air/gas mixture sweeps across the cup are responsible for their outstanding performance. The DNS nozzle mix burner quickly and thoroughly mixes the fuel and combustion air. The air/gas mixture enters the cup at its base. Combustion is rapid so there is a quick release of the total heat potential of the fuel and the heat is radiated from the fully reacted gas that are closer to theoretical flame temperature Also because the Combustion is complete within the cup, the heat exiting from the cup is uniform, stable and highly controllable.

Endorsed by major global companies like APV Bakers. Selas ERB Ensign ribbon burners outperforms all previous zone burners in :

  • Can be placed closer to the work pieces than conventional type burners
  • Operates at Stoichiometric conditions, thus eliminating the heat load that exits with the excess air
  • Step design of burner provides flow barrier to protect casing from overheating.
Specifications :
Fuel : Natural Gas, LPG or any clean commercial Gas
Burner Capacity : 2,50,000 Btu/hr(73 kW) to 25,00,000 Btu/hr(734 kW)

Air Pressure : 12.5” wc (31.8 mbar) to 22” wc (55.9 mbar)

Air & Gas Pressure : 5.5” wc (14 mbar) to 7” wc (17.8 mbar)

Applications :
Heating and Heat treatment of ferrous and non ferrous metal, Continuous Strip heating, Chemical processing and many other applications.

for more details visit : www.selas.com

Pyronics NM Series Nozzle Mix Burner

Features & Benefits : Nozzle Mix Burners are short flame high capacity units designed for extremely wide turndown ranges. Gas and air are mixed only at the point of discharge, flashback is prevented.

Exclusive stepped tunnel design creates very high turbulence and internal recirculation in the flame. The combustion tunnel shape produces pressures in the flame that are lower than the furnace pressure aiding flame retention.

NM burners develop capacity ratings at low pressure drops. Economical low pressure air blowers are adequate. Flame lengths are very short. Large combustion chambers are not required. When operating in air heaters flame shield block extensions are used to prevent flame quenching.
Specifications :
Fuel : Natural Gas, LPG, COG, BFG & Producer Gas etc
Burner Capacity : 35000 Btu/hr(10 kW) to 58800000 Btu/hr(17000 kW)

Air & Gas Pressure : ½ oz (2.2 mbar) to 10 oz (43 mbar)

Applications :
Forging Furnaces, Air Heaters, Annealing Furnaces Fume Destructors, Melting Furnaces, Ovens, Dryers, Malleabilizing Furnaces, Incinerators, Crematoriums, Ladle Heating, Curing Ovens, Burn Out Furnaces and Steam Generators.

for more details visit : www.selas.com

Pyronics XNM Series Excess Air Nozzle Mix Burner

Features & Benefits : The Pyronics XNM Series Excess Air Burners are intermediate flame length, nozzle mixing types designed for 800% excess air. A unique design and stepped tunnel burner blocks produce excellent flame stability at all firing rates.

New air-gas mixing principles produce very high excess air combustion without appreciable fumes at lower equipment costs. .

  • 500% - 800% excess air
  • Preheated air up to 750°F
  • Instant lighting at all firing ranges
  • High discharge velocities
  • Low air and gas pressures required
  • Unique stepped tunnel design
  • Operation to 2500°F
Specifications :
Fuel : Natural Gas, LPG, COG, BFG & Producer Gas etc.
Burner Capacity : 60 kW to 1800 kW
Air Pressure : ¼ oz (1 mbar) to 6 oz (26 mbar)
Gas Pressure : ¼ oz (1 mbar) to 6 oz (26 mbar)

Applications :
Annealing Furnaces, Air Heaters, Heat Treat Furnaces, Spheroidizing Units, Metal Melters, Incinerators Stress Relieving Furnaces, Brick Kilns, Plate Heating, Sand Drying Crucible Heating and Multiple Purpose Furnaces etc.

for more details visit : www.selas.com

Pyronics XDF Series Excess Air Nozzle Mix Dual Fuel Burner

Features & Benefits : Pyronics Cool Flame series XDF dual fuel excess air burners are nozzle mixing oil or gas units designed for up to 350% excess air or on ratio firing. A unique stepped tunnel design produces excellent flame stability at all firing rates. All sizes are designed for turndown of ten to one on ratio with 16 oz. combustion air pressure. The burner is designed for sealed firing in positive, neutral or negative pressure combustion chambers. .

  • 350% excess air
  • Preheated air up to 750°F
  • Excellent flame stability instant lighting with either fuel
  • Turndown 10:1 on ratio with single air valve control
  • Patented atomization & Unique stepped tunnel design
  • Sealed construction for back pressure firing to 10 PSIG
  • Operation to 2500°F
Specifications :
Fuel : LDO, NG, LPG, COG, BFG & Producer Gas etc.
Burner Capacity (Oil) : 5 GPH (200 kW) to 49 GPH (1990 kW)

Applications :
Annealing Furnaces, Air Heaters, Heat Treat Furnaces, Spheroidizing Units, Metal Melters, Incinerators Stress Relieving Furnaces, Brick Kilns, Plate Heating, Sand Drying Crucible Heating and Multiple Purpose Furnaces etc.

for more details visit : www.selas.com

Pyronics HS Series High Velocity Nozzle Mix Burner with Refractory Block

Features & Benefits : The Hot Shot (HS) series is a nozzle-mixing, hi-velocity burner used primarily where a high recirculation rate of the products of combustion is required. The produce a hi-velocity stream of hot gases at the exit of the burner tunnel which will give a high degree of heat penetration into the work in a furnace. The result being greater effciency with reduced fuel costs. Burners can also operate with excess air of fuel providing additional versatility in process applications.

  • Hi-Velocity: 250 ft./sec.
  • Turndown: 10 to 1
  • Excess Air: 300% (without pilot)
  • Excess Fuel: 40% (without pilot)
  • Direct Spark: Available (low re start only)
  • Preheated Air: Up to 750°F as Std. (1000°F units available, consult factory)
Specifications :
Fuel : Natural Gas, LPG, COG, BFG & Producer Gas etc
Burner Capacity : 3,20,000 Btu/hr (90 kW) to 51,50,000 Btu/hr (1500 kW)

Air Pressure : 20 oz (86 mbar) for reaching maximum capacity

Gas Pressure : 20 oz (86 mbar) for reaching maximum capacity

Applications :
Periodic Kilns, Shuttle Kilns, Tunnel Kilns, Large Car bottom Furnaces, Heat Treating, Stress Relieving, Ladle Heating, Impingement Heating & Reverberatory Furnaces.

for more details visit : www.selas.com

Pyronics HS Series High Velocity Nozzle Mix Oil Fired Burner with Refractory Block

Features & Benefits : The Hot Shot Dual Fuel (HSDF) series is a nozzle-mixing hi-velocity burner which will burn most gaseous fuels as well as light distillate oils. With either fuel being used the products of combustion are hi-velocity gases which provide fast penetration and improved temperature uniformity to the work in a furnace. As a result, greater efficiency is obtained and greater fuel savings realized. Being able to switch from one fuel to another without interruption gives the user great versatility in areas where gaseous fuels may be curtailed. Will operate on ratio and with excess air or gas for additional versatility. .

  • Hi-Velocity: 300 ft./sec.
  • Turndown: 8 to 1
  • Excess Air: 300% (without pilot)
  • Ignition : Gas Pilot
  • Preheated Air: Up to 750°F as Std. (1000°F units available, consult factory)
Specifications :
Fuel : Light Diesel Oil
Burner Capacity : 3,50,000 Btu/hr (102 kW) to 56,00,000 Btu/hr (1630 kW)
Combustion Air Pressure:20 oz(86 mbar)for reaching max. capacity
Atomizing Air Pressure: 20 oz (86 mbar) for reaching max. capacity

Applications :
Periodic Kilns, Shuttle Kilns, Tunnel Kilns, Large Car bottom Furnaces, Heat Treating, Stress Relieving, Ladle Heating, Impingement Heating & Reverberatory Furnaces.

for more details visit : www.selas.com

Pyronics SW Series Flat Flame Nozzle Mix Burner

Features & Benefits : Sidewinder Gas Burners are nozzle-mixing units with a high velocity spinning, air flow. The swirling air stream produces a negative vortex at the refractory block mouth. Gas enters the vortex, mixing rapidly, producing intense combustion. The inverted parabolic shape of the burner block port works with the vortex to pull flames flat to the furnace wall at firing rates and mixtures.

  • Flames Flat to Furnace Wall
  • No Forward Velocity at Normal Firing Rates
  • On-Ratio, Excess Air, or Excess Gas Firing
  • 10:1 Turndown, On-Ratio with 16 oz. Air at Burner
Specifications :
Fuel : Natural Gas, LPG, COG, BFG & Producer Gas etc
Burner Capacity : 12,000 Btu/hr (3.6 kW) to 25,00,000 Btu/hr (750 kW)

Air Pressure : 0.16 osi (0.7 mbar) to 16 osi (68.8 mbar)

Gas Pressure : 0.16 osi (0.7 mbar) to 16 osi (68.8 mbar)

Applications :
Billet Heaters, Cover Annealers, Car Bottom Furnaces, Roof Fired Rotary Furnaces, Galvanizing Tanks Crucible Melters, Process Heaters, Heat Exchangers and Holding Ladles.

for more details visit : www.selas.com

Pyronics HMB Series High Velocity Nozzle Mix Burner with Silicon Carbide Tube

Features & Benefits : Pyronics High-Momentum Burners (HMB) are designed for process temperatures up to 2700°F. The burners are equipped with advanced silicon carbide firing tubes and incorporate 2-stage combustion.

Specially designed nozzles provide cool NOx-inhibiting first stage combustion. Final combustion occurs in the second stage area where combustion products exit at velocities of over 400 fps. This high velocity drives heat into dense loads and agitates the furnace atmosphere for thorough heat distribution assuring faster through-put. Light weight SiC firing tubes are self-supporting, eliminating the need for costly and difficult-to-maintain in-furnace support systems. The burners are ideal for installation in either brick or fiber wall furnaces. The burners are easily mounted to the furnace with only four bolts.

  • Low NOx Formation
  • High Velocity Flame
  • Preheated Air Temperature to 1000°F
  • Direct Spark Ignition
  • Specifically Engineered Air Inlet Orifice
Specifications :
Fuel : Natural Gas, LPG & any Clean Mfg. Gas etc
Burner Capacity : 3,50,000 Btu/hr (100 kW) to 6,50,000 Btu/hr (200 kW)

Air Pressure : 20” wc (51 mbar) for reaching maximum capacity

Gas Pressure : 20 oz (51 mbar) for reaching maximum capacity

Applications :
Bell or Rectangular Cover Annealing Furnaces, Sintering Furnaces, Slot and Box Type Forge Furnaces Nonferrous Melting Furnaces.

for more details visit : www.selas.com

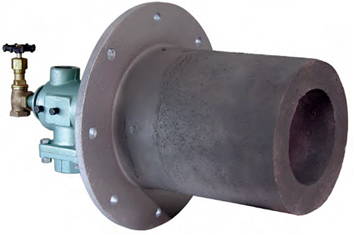

Pyronics HMCT Series LOW NOX High Velocity Nozzle Mix Burner with Silicon Carbide Tube

Features & Benefits : Pyronics High-Momentum Ceramic Tube Burners (HMCT)are designed for process temperatures up to 2500°F. The burner’s outer tube is made of an advanced silicon carbide and the inner firing tube is made of stainless steel alloy. The burner incorporates 2-stage combustion for low NOx. Specifically designed nozzles provide cool NOx-inhibiting first stage combustion Final combustion occurs in the second stage area where combustion products exit at velocities of over 400 fps. This high velocity drives heat into dense loads and agitates the furnace atmosphere for thorough heat distribution assuring faster through-put.

  • High Excess Air Capability
  • Low NOx Formation
  • High Velocity Flame
  • Self-Supporting SiC Burner Tubes
  • Specifically Engineered Air Inlet Orifice
Specifications :
Fuel : Natural Gas, LPG & any Clean Mfg. Gas etc
Burner Capacity : 2,50,000 Btu/hr (74 kW) to 15,00,000 Btu/hr (440 kW)

Air Pressure : 20” wc (51 mbar) for reaching maximum capacity

Gas Pressure : 20” oz (51 mbar) for reaching maximum capacity

Applications :
Cover Annealing Furnaces, Sintering Furnaces Slot and Box Type Forge Furnaces, Nonferrous Melting Furnaces & Kilns.

for more details visit : www.selas.com

Pyronics HMCT-P Series LOW NOX, PACKAGED High Velocity Nozzle Mix Burner with Silicon Carbide Tube

Features & Benefits : The new Selas HMCT-Pak burner is an innovative adaptation of Selas' proven High Momentum Ceramic Tube (HMCT) low NOx burner. Its compact design features a pre-calibrated linkage less control system, a variable speed fan to conserve energy and low 60 ppm NOx performance at maximum load. A complete pre-assembled and factory calibrated package burner, the HMCT-Pak saves money and labour on installation and tuning and virtually eliminates routine calibration. Its 40:1 turndown ratio accommodates a wide range of heating demands.

  • Complete packaged burner assembly with air blower, controls, filter and gas train, factory tested and calibrated, ready for drop-in installation
  • Low CO2 and NOx levels at process temperatures of 500o F to over 2,500o F
  • Variable speed air-blower with PWM Control to save on energy costs
  • Programmable load control and Accurate air/gas ratio control
  • Two gas safety valves with Proof of Closure
Specifications :
Fuel : Natural Gas, LPG & any Clean Mfg. Gas etc
Burner Capacity : 8,00,000 Btu/hr (234 kW) to 18,00,000 Btu/hr (530 kW)

Air Pressure : 2” wc (5.1 mbar) to 18” wc (45.7 mbar)

Gas Pressure : 1” wc (2.54 mbar) to 16.8” wc (42.7 mbar)

Applications :
Heat treat and forging in:Aluminum, copper, ferrous metal, iron, non-ferrous metal, steel (flat and long);incineration in waste applications; heat treat in ceramics; glass.

for more details visit : www.selas.com

Pyronics UHF Series LOW NOX Radiant Tube Nozzle Mix Burner for U and W Type Radiant Tubes

Features & Benefits : UHF series burners are compact, sealed nozzle-mix units designed to operate in radiant tubes with maximum combustion efficiency over varying operating conditions. UHF burners provide delayed mixing and uniform progressive combustion for even tube heating, temperature uniformity and optimum tube life. Flame length and geometry are adjustable through the possible use of an air-gas partial pre-mixing that suits the flame to the job. UHF burners can be used with preheated air up to 480°C, and may be operated in a high-low, a high-low-o mode or fully modulated over a 5 to 1 turndown range, using excess air at low fire.

  • Superior flame stability and mixing at all ring rates
  • Flame length adjustment
  • Typical oxygen levels in the exhaust gases : 3 to 4% @ high fire and 12 to 16% @ low re
  • Accepts hot air up to 480°C
  • Low air and gas pressures
Specifications :
Fuel : Natural Gas, LPG & any Clean Mfg. Gas etc
Burner Capacity : 25,000 Btu/hr (7.5 kW) to 7,50,000 Btu/hr (220 kW)

Air Pressure : 5.7 osi (24.5 mbar) to 8 osi (34.4 mbar)

Gas Pressure : 2.8 osi (12 mbar) to 6 osi (25.8 mbar)

Applications :
Radiant “U” tubes, Radiant “O” tubes Radiant “W” tubes, Radiant “L” tubes and Trident radiant tubes.

for more details visit : www.selas.com

Pyronics PC Series Packaged Nozzle Mix Burner

Features & Benefits : The Pyronics TF Packaged Burner Series is designed to offer the equipment designer and user a complete pre-wired, pre-piped burner package for firing into immersion tubes in liquid tanks. The system offers the precise package required for virtually all types of immersion tube process heating applications. The TF burners utilize standard nozzle mix burner heads and are intended for applications in “conventional” sized tubes with diameters up to 12" and length to diameter ratios up to 80:1 depending on tube diameter.

  • High thermal efficiencies
  • High tube length to diameter ratios up to 80:1
  • Pre-packaged, pre-piped assembly
  • FM and IRI gas trains available
  • Electrical components pre-wired to electrical enclosure
  • Ease of maintenance and installation
  • Easy access to gas nozzle, spark plug and flame sensor
Specifications :
Fuel : Natural Gas, LPG & any Clean Mfg. Gas etc
Burner Capacity : 1,70,600 Btu/hr (50 kW) to 33,43,760 Btu/hr (980 kW)

Applications :
Parts washers, Coating & Finishing tanks and Salt & Acid baths.

for more details visit : www.selas.com

Pyronics PP Series Packaged Nozzle Mix Burner

Features & Benefits : The Pyronics PP Package Burner Series is designed to offer the oven designer, process engineer or user a complete prewired, pre-piped burner package. The system offers the precise package required for virtually all types of low temperature gas fired process heating applications. Available gas trains include either FM or IRI with modular components or the “traditional” individual components. Most sizes offer a choice of firing methods: on-off, high-low, or gas only modulation with constant air.
  • Pre-packaged, pre-piped assembly
  • FM and IRI gas trains available
  • Gas-only modulation, high-low or on-off firing as required
  • Electrical components pre-wired to electrical enclosure
  • Easy access to gas nozzle, spark plug and flame sensor
  • Twelve sizes - two lineal heat rates
  • Designed for high turndown
Specifications :
Fuel : Natural Gas, LPG & any Clean Mfg. Gas etc
Burner Capacity : 5,00,000 Btu/hr (145 kW) to 60,00,000 Btu/hr (1740 kW)

Applications :
Firing of box ovens, Industrial Dryers and Air Heaters.

for more details visit : www.selas.com
