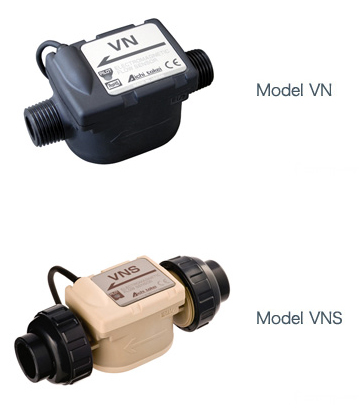

VN & VNS Small Electromagnetic Flow Sensor
Features & Benefits :
- Compact and excellent cost performance
- Outstanding reliability with no moving parts
- Suitable for use in machines
- Easy-to-check 2-color LED(status) indicator
- 2 selectable outputs (Unit pulse,High-density Pulse and Warning Switch)
Specification :
Fuel : Liquid which does not corrode materials that contact the liquid not less than electric conductivity rate 50μS/cm
Flow Range : 0.05 L/min to 60 L/min
Size : ¼” to 1”
Max Working Pressure : 1 MPa at 25°C
Fluid Temperature : 0 to 60°C
