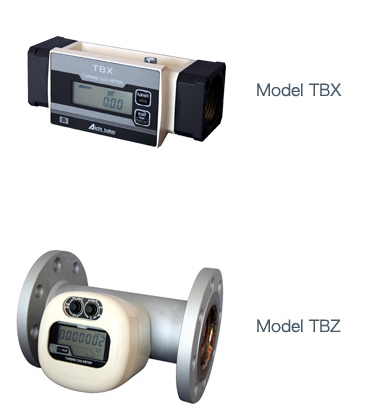

Features & Benefits : Turbine gas meters TBZ and TBX series, developed to measure gas consumption of a small boiler, an individual furnace, or other individual gas equipment, are achieved to have high accuracy consists with the light-weighted compact stylish body.
They can widely correspond to maximum working pressure and maximum measuring flow-rate. The built-in 2-systems pulse transmitter allows your configuration of a remote reading system or of an advanced energy management system. Also, TBZ series even offers temperature / pressure compensation function that is to display gas consumption converted to its volume at the standard conditions (0,1 atms ), etc.
Specification :
Fuel : Natural Gas, LPG, Air & any other clean commercial gas
Flow Range (For TBX Models) : 4 m3/hr to 150 m3/hr
Flow Range (For TBZ Models) : 6 m3/hr to 300 m3/hr
Size (For TBX Models) : 1 ¼” to 2”
Size (For TBZ Models) : 1 ½” to 3”
Max Inlet Pressure (For TBX Models) : 1 Kg/cm2
Max Inlet Pressure (For TBZ Models) : 9.9 Kg/cm2
They can widely correspond to maximum working pressure and maximum measuring flow-rate. The built-in 2-systems pulse transmitter allows your configuration of a remote reading system or of an advanced energy management system. Also, TBZ series even offers temperature / pressure compensation function that is to display gas consumption converted to its volume at the standard conditions (0,1 atms ), etc.
- Low cost & compact-size comparing with conventional gas meters
- Measuring range of ±1%FS & ±3%RS
- Wide correspondence to maximum working pressure*
- Free installation position
- Built-in 2-systems pulse transmitter
- Various measurable gases
- Liquid crystal display where many information can be confirmed
- Temperature/pressure compensation function (Selective)
- 7 years of non-stop operation
Specification :
Fuel : Natural Gas, LPG, Air & any other clean commercial gas
Flow Range (For TBX Models) : 4 m3/hr to 150 m3/hr
Flow Range (For TBZ Models) : 6 m3/hr to 300 m3/hr
Size (For TBX Models) : 1 ¼” to 2”
Size (For TBZ Models) : 1 ½” to 3”
Max Inlet Pressure (For TBX Models) : 1 Kg/cm2
Max Inlet Pressure (For TBZ Models) : 9.9 Kg/cm2
